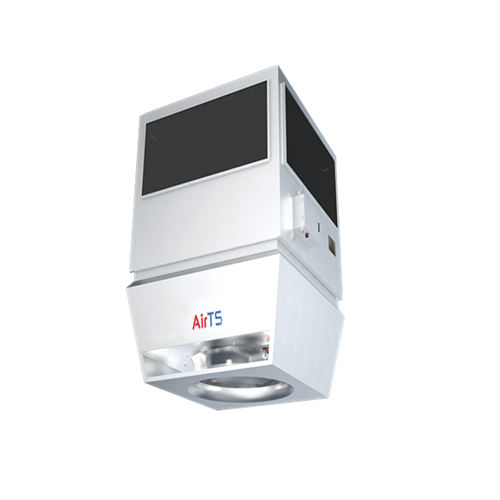

Recirculated Air Heating and Cooling Unit

Working Principle

When hot/cold water or stream passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating/cooling of the air.

The large wind pressure axial flow fan installed on the top is used to forcedly press the hot/cold air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.

Recirculated Air Heating and Cooling Unit Features

By adjusting wind speed and air outlet angle, it achieves comfortable cooling or heating environment

Supply air angle stepless regulation

Utilize axial fan to efficiently recover heat from the top space, reducing heat/cool loss from the roof, achieving energy-saving effects

The fan is installed below the air exchanger to control noise level (<60 dB)

The special designed square-shaped type air exchanger prevent the leakage of condensate water

The complex designed air exchanger, 1.5 times exchange area than others, takes significant heating efficiency

Long air supply distance, high hot/cold air volume

4 sides return air structure, installed on the roof, require smaller installation space

Function: cooling, heating

The energy-saving air conditioning system for high and large spaces encompasses various media types, including cold/hot water, steam and electricity which allows to meet the needs of heating, cooling, ventilation, humidification, dehumidification and dust removal for buildings ranging from 4 to 30m in height.

For more details please contact AirTS
