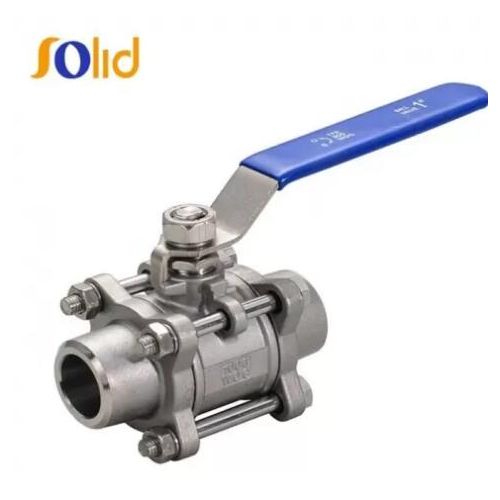

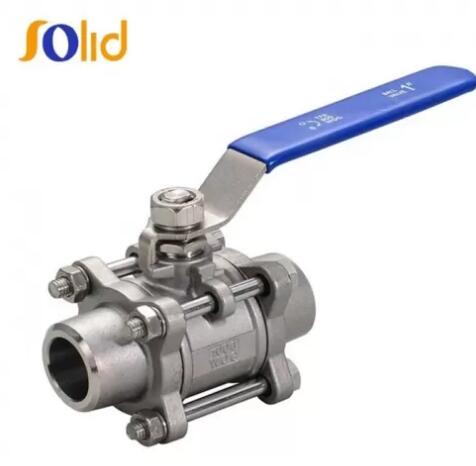

Stainless Steel 3PC Ball Valve

The Stainless Steel 3PC Ball Valve is a versatile and reliable valve solution widely used in various industrial and commercial applications. Available in both 304 and 316 stainless steel, it offers exceptional corrosion resistance and durability in even the most challenging environments. Designed with a full-bore and threaded ends, these valves ensure smooth fluid flow and easy installation, making them ideal for a variety of piping systems.

Description:

Stainless Steel Full Bore 3PC Ball Valve
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300  °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)
Female threaded or socket welded end

Handle with locking device

Features:

3PC Ball Valve Screw Ends 1000WOG

Investment Castings For Body and Cap
Internal Entry Blow-off Proof Stem
Pressure Rating: 1000PSI (PN63)
Threaded Ends: ANSI B2.1, BS 21, DIN259/2999
Material: CF8, CF8M, SF3M, WCB
Pressure Test: API598
Size: 1/4"- 4"

Body: Carbon Steel WCB, Stainless steel CF8, CF8M;
Cap: Carbon Steel WCB, Stainless steel CF8, CF8M;
Stem: Stainless Steel AISI304/316
Ball: Stainless steel CF8, CF8M;
Ball seat: PTFE;
Stem Packing: PTFE
Gland nut: Carbon Steel WCB, Stainless steel CF8, CF8M;
Bolt, Nut, Washer: Stainless steel AISI304/316;
Handle: Stainless steel AISI304;
Handle Sleeve: Plastic;
Lock Device: Stainless steel AISI304
